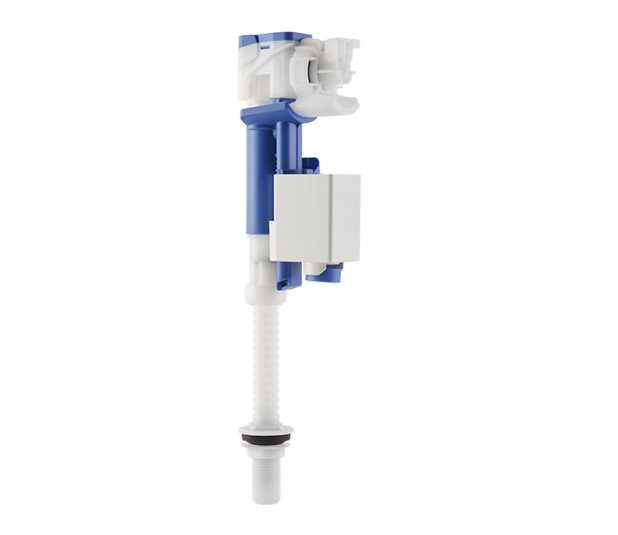

IVC102 PLUS

Universal Mechanisms

Code . 878735

IVC 102 Plus is a silent and ecological filling valve for siphonic toilets with an integrated water saving system that allows a water saving of up to 0.1 gal on average with each full flush, resulting in a daily average saving of 2.4 gal. The adjustable connection (between 8’’ to 11’’) makes the IVC102 Plus the perfect solution for one piece and two piece toilet tanks. The integrated refill control allows the user to adjust the volume of water on the toilet.

Characteristics
  • Compatible with siphonic toilets;
  • Integrated refill control;
  • Delayed refilling inlet valve: it starts after the outlet valve is in the close position;
  • Bottom inlet valve with 15/16 in plastic connection;
  • Height is adjustable;
  • Easy maintenance;
  • Silent and ecological filling valve;
  • Integrated filter that can be cleaned;
  • Counter pressure closing system (hydraulic);
  • Dynamic pressure functioning range: 0.5-6bar;
  • Maximum static pressure: 16bar;
  • Anti-backflow function;
  • Quick filling;
  • 10 years warranty.
